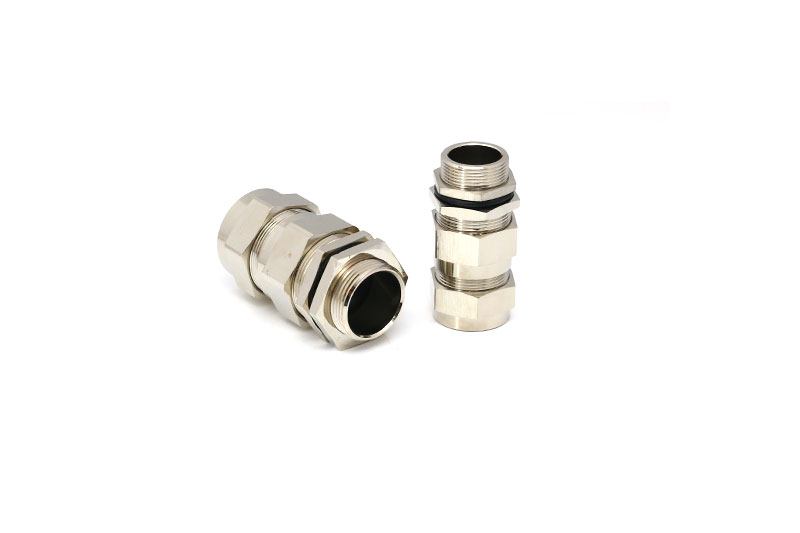

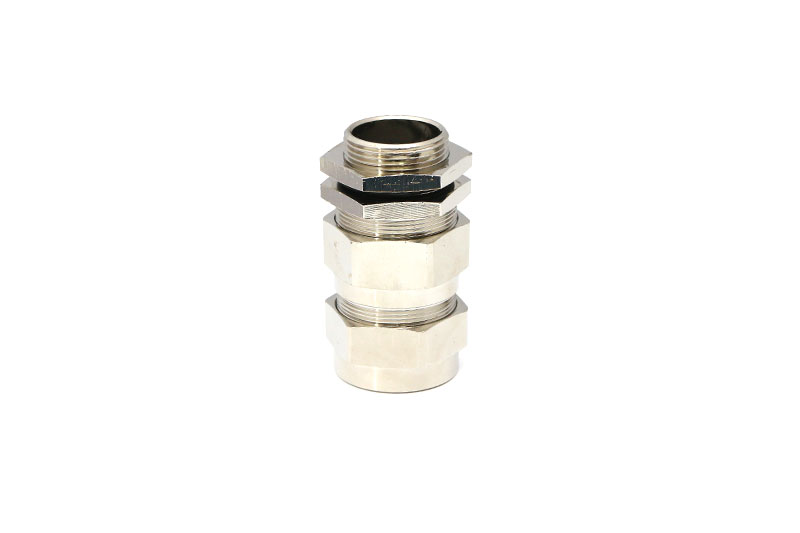

單密封防水金屬填料函鎧裝電纜防爆格蘭頭廠家定制
分類：防爆格蘭頭
型號：EXD
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
防爆標志：Exd IIC Gb
材料：黃銅鍍鎳/304不銹鋼
防護等級：IP67
使用環境溫度：-40℃至80℃
產品特性：用于爆炸危險的場所，防爆電氣設備連接，化工、石油、電力、輕工、機械等各個部門，特適用于自動化工程線路安裝。
技術參數
EXD-M螺紋
| 規格型號 | 螺紋規格 | 電纜直徑 | 螺紋長度 | 總長度 | 對邊 |
| EXD-M20 | M20*1.5 | 6-12 | 15 | 73 | 27 |
| EXD-M25 | M25*1.5 | 13-18 | 15 | 73 | 30 |
| EXD-M32 | M32*1.5 | 18-25 | 15 | 75 | 36 |
| EXD-M40 | M40*1.5 | 22-32 | 18 | 88 | 45 |
| EXD-M50 | M50*1.5 | 32-38 | 18 | 92 | 57 |
| EXD-M63 | M63*1.5 | 37-44 | 18 | 95 | 70 |
EXD-G制螺紋
| 規格型號 | 螺紋規格 | 電纜直徑 | 螺紋長度 | 總長度 | 對邊 |
| EXD-G1/2 | G1/2" | 6-12 | 15 | 73 | 27 |
| EXD-G3/4 | G3/4" | 13-18 | 15 | 73 | 30 |
| EXD-G1 | G1" | 18-25 | 15 | 75 | 36 |
| EXD-G1 1/4 | G1 1/4" | 22-32 | 18 | 88 | 45 |
| EXD-G1 1/2 | G1 1/2" | 32-38 | 18 | 92 | 57 |
| EXD-G2 | G2" | 37-44 | 18 | 95 | 70 |
EXD-NPT制螺紋
| 規格型號 | 螺紋規格 | 電纜直徑 | 螺紋長度 | 總長度 | 對邊 |
| EXD-N1/2 | NPT1/2" | 6-12 | 15 | 73 | 27 |
| EXD-N3/4 | NPT3/4" | 13-18 | 15 | 73 | 30 |
| EXD-N1 | NPT1" | 18-25 | 15 | 75 | 36 |
| EXD-N1 1/4 | NPT1 1/4" | 22-32 | 18 | 88 | 45 |
| EXD-N1 1/2 | NPT1 1/2" | 32-38 | 18 | 95 | 57 |
| EXD-N2 | NPT2" | 37-44 | 20 | 97 | 70 |
